IRtech Guide Sensmart H3 Professional Industrial Thermal Camera Instrument Group EIRTIWH3

Thanks to a NETD thermal sensitivity of 45mK (0.045°C), the H3 can detect minimal temperature differences, allowing for precise identification of thermal anomalies even in complex conditions. The integrated auto-shutter ensures continuous calibration, eliminating thermal interference and improving image stability over time.

The wide measurement range from -40°C to +650°C allows its use in a wide range of applications, from cryogenic monitoring to high-temperature systems. The 30Hz refresh rate ensures fluid, real-time viewing, making the H3 also suitable for dynamic analysis of moving components.

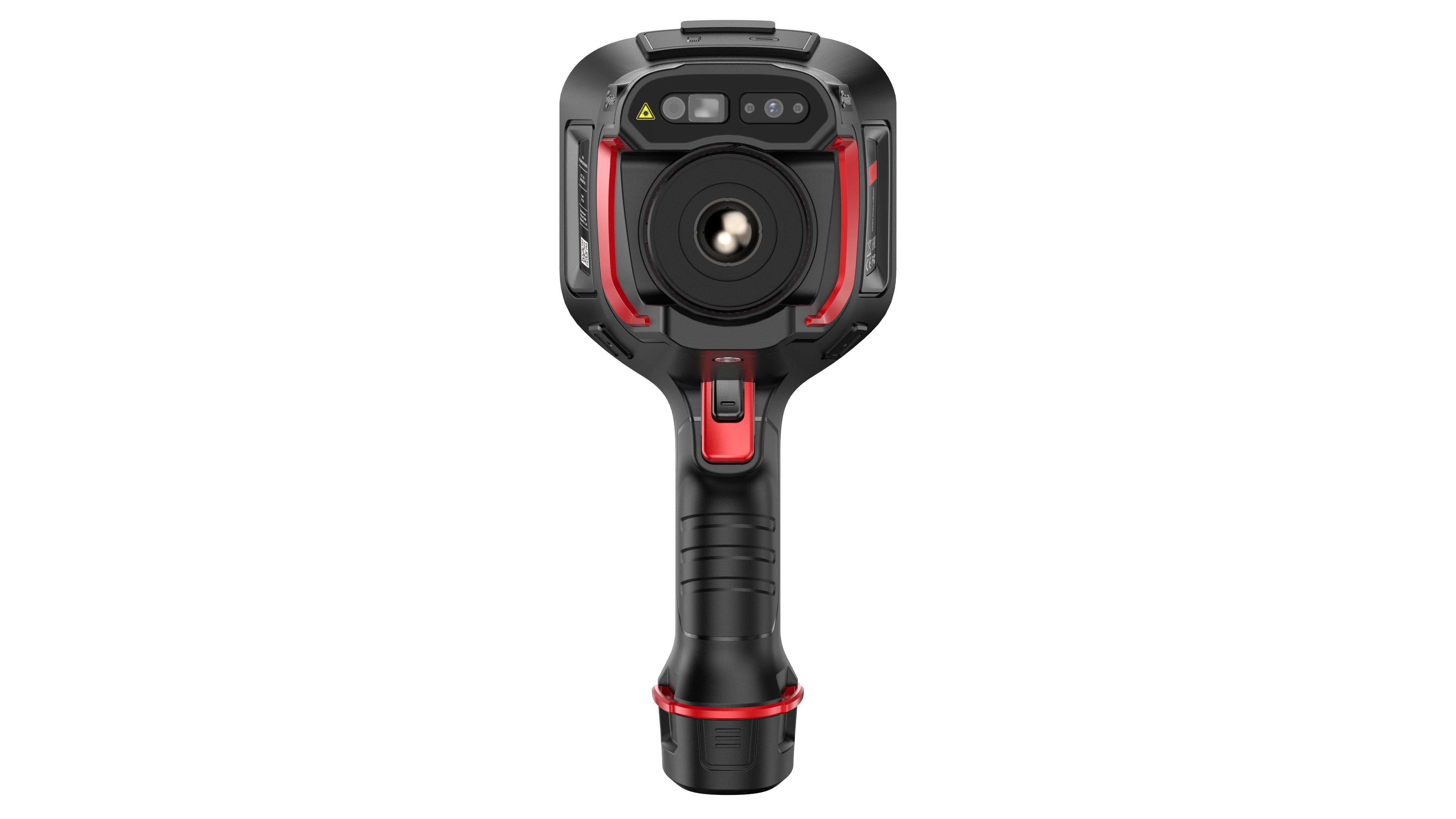

In addition to the thermal component, the thermal imager integrates a 5MP visual camera with an LED illuminator, which allows adjustable fusion between IR and visible images (Picture-in-Picture mode), improving the interpretation of the thermal image. The laser pointer facilitates the identification of the area of interest directly on site.

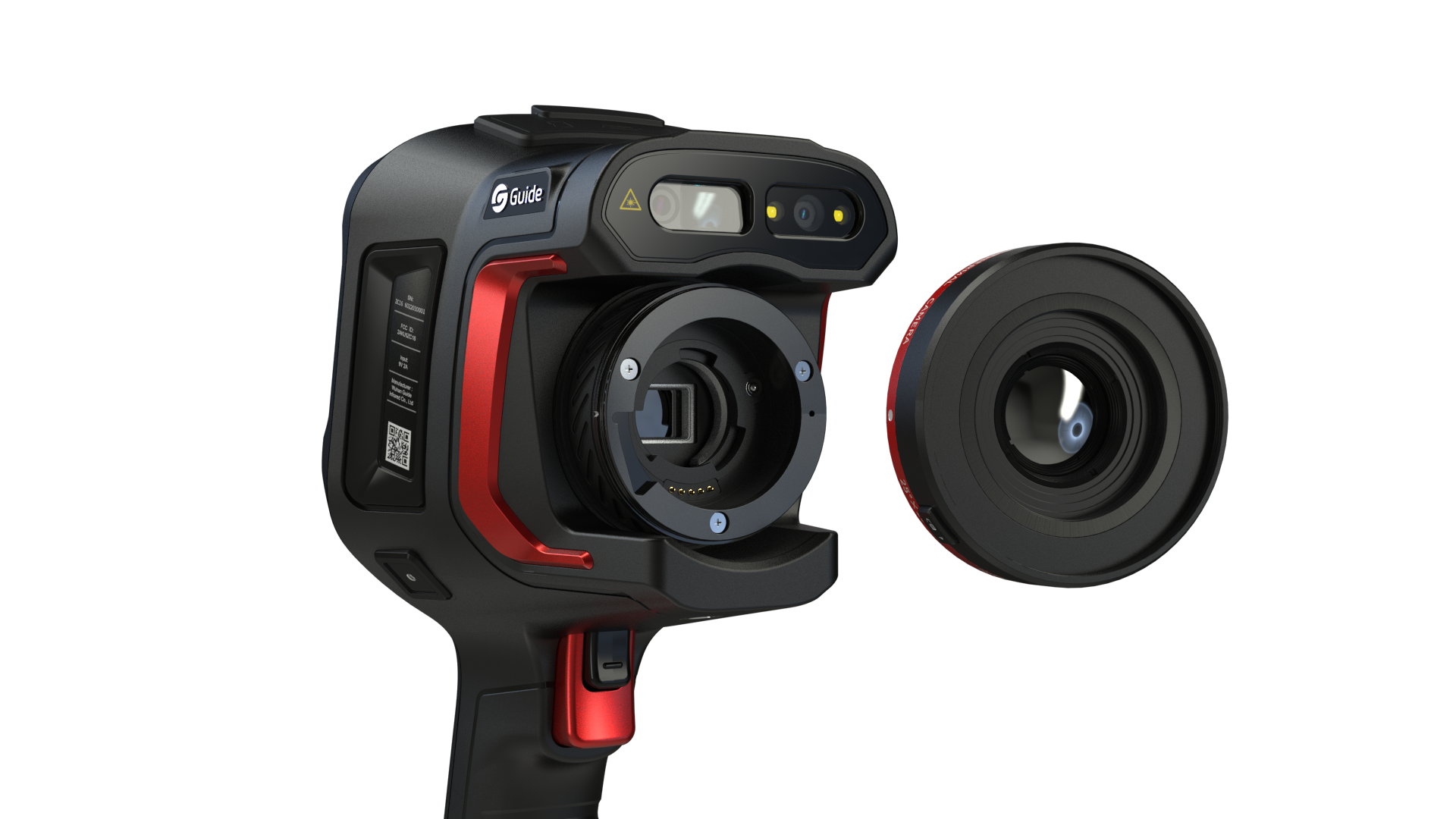

The standard optical configuration includes a 25°x19° lens (IFOV 1.36mrad), with the possibility of mounting optional interchangeable lenses: 44° wide-angle, 15° telephoto, and 7° ultra-telephoto, to perfectly adapt to every operational scenario. The continuous auto-focus system, with a minimum distance of 0.1m, always ensures the best sharpness without manual intervention.

The 4.3” TFT touch LCD display is bright and intuitive, with a user-friendly interface that allows immediate access to advanced functions such as ROI (Spot, Line, Rectangle/Circle), emissivity setting, isotherms with alarms, auto-range, or manual mode. Data management is simple and complete: radiometric images, visible photos, radiometric videos, and time-lapse can be stored both in the internal memory and on the included 64Gb SD card.

Advanced features are available to document inspections, such as voice comment recording via integrated microphone and speaker, textual annotations on images, and professional analysis and reporting software (ThermoTools) compatible with Windows.

Connectivity is another strong point: USB-C 3.0, Bluetooth, and real-time WiFi allow fast data transfer and connection to external systems, even in real time.

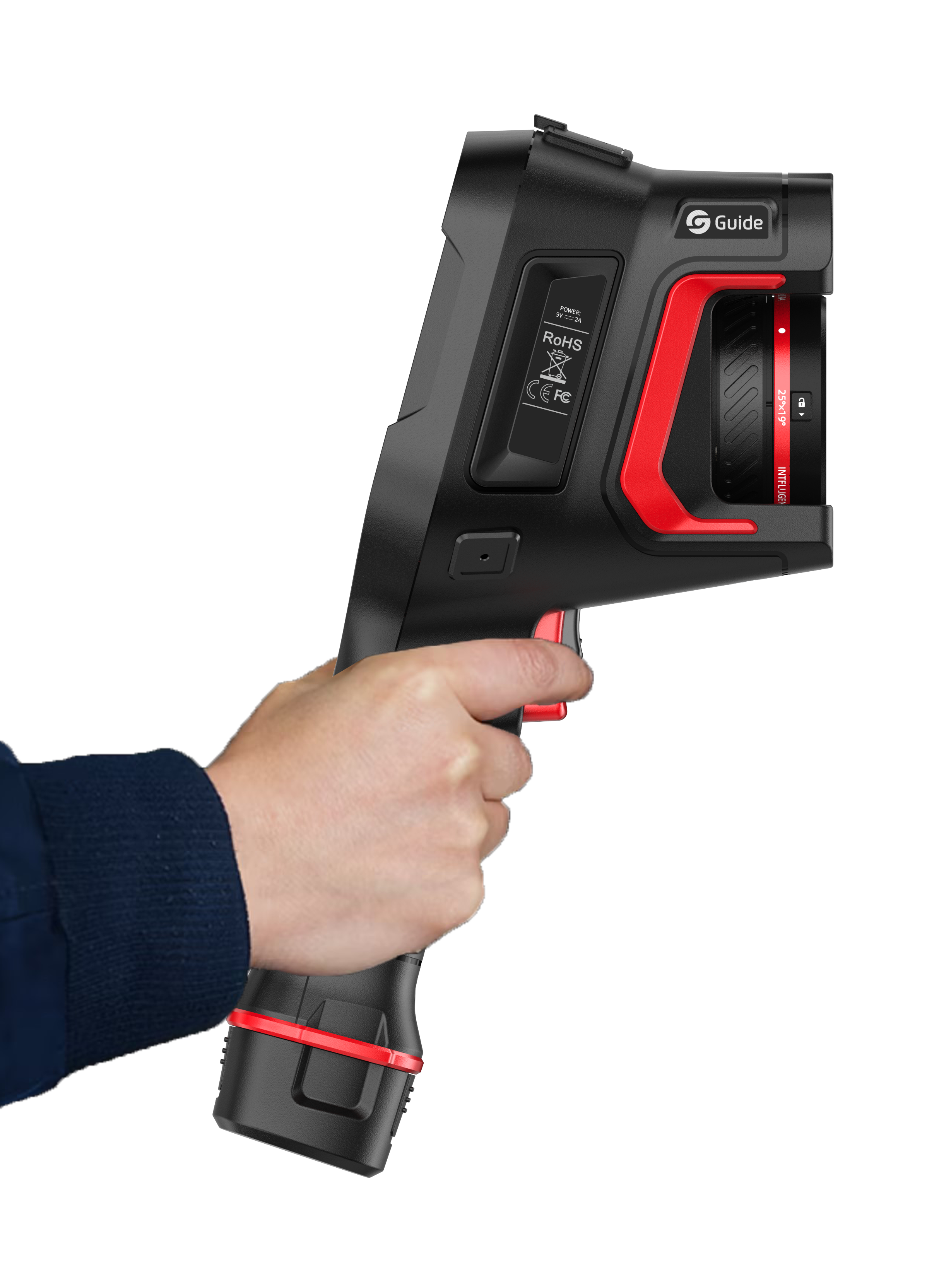

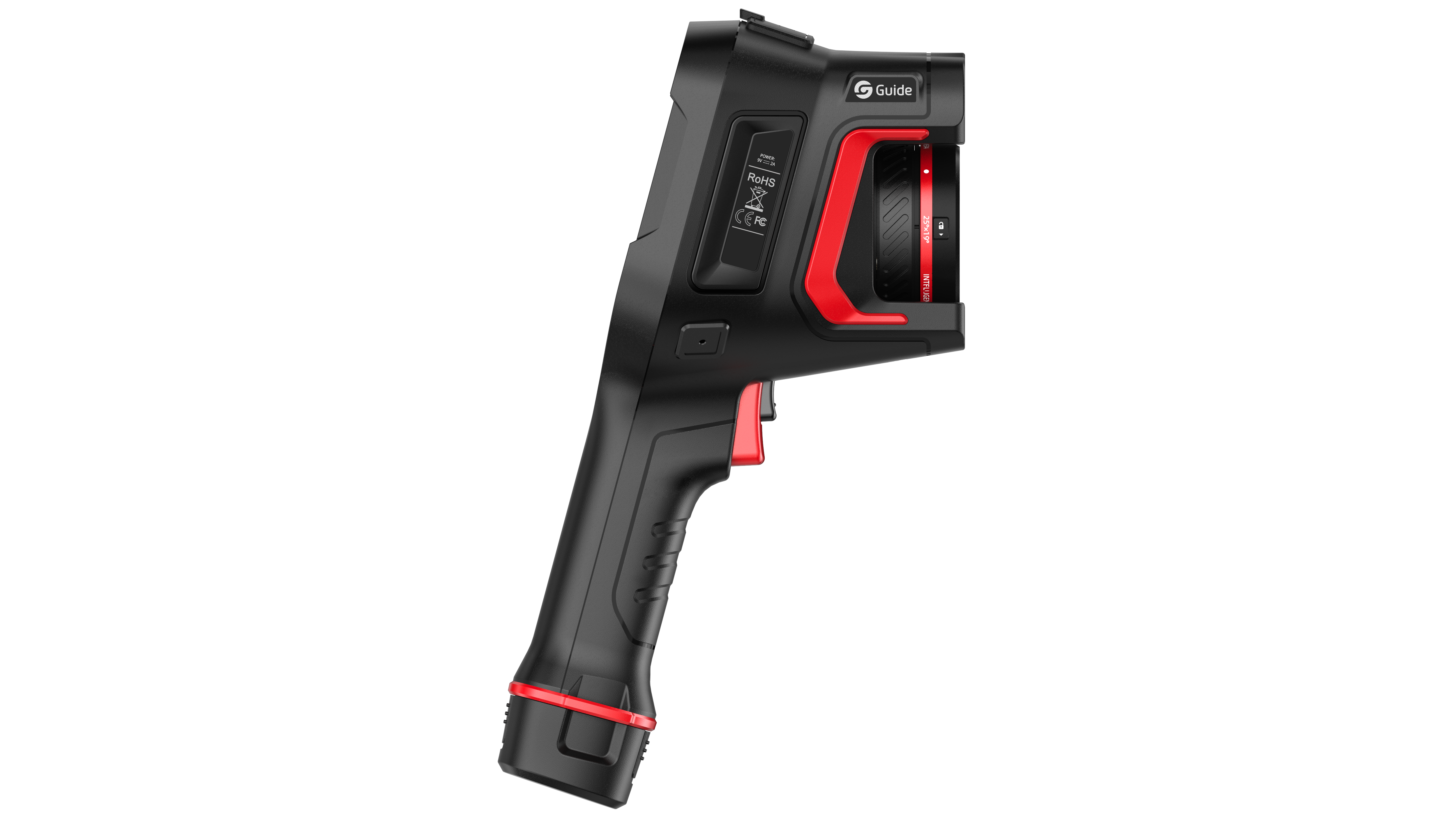

From an ergonomic and constructive point of view, the Sensmart H3 stands out for its compact design (292x125x125mm) and low weight of 1.2 kg, ideal for daily use even in difficult environments. The structure is IP54 certified, resistant to dust and water splashes, and tested for drops up to 2 meters and for shock and vibrations, confirming its reliability in the field.

Package Contents:
IRtech Guide Sensmart H3 thermal imager with 25° lens and strap
USB-C cable and Ethernet cable
64Gb SD Memory Card
Power supply and charger
External charging dock for battery pack
Two rechargeable and interchangeable Li-ION battery packs
Professional ThermoTools software for Windows

Full user manual
Individual calibration certificate
Hard shockproof carrying case
2-year warranty

Main Applications:
Electrical and thermal inspections on panels and systems
Predictive maintenance on industrial machinery
Thermographic diagnosis in construction (thermal bridges, infiltrations, insulation)
Quality control in production processes
Thermal analysis in research and development

The IRtech Guide Sensmart H3 represents an ideal solution for demanding professionals seeking high performance, optical versatility, constructive robustness, and ease of use in a single compact and complete thermal imager.
