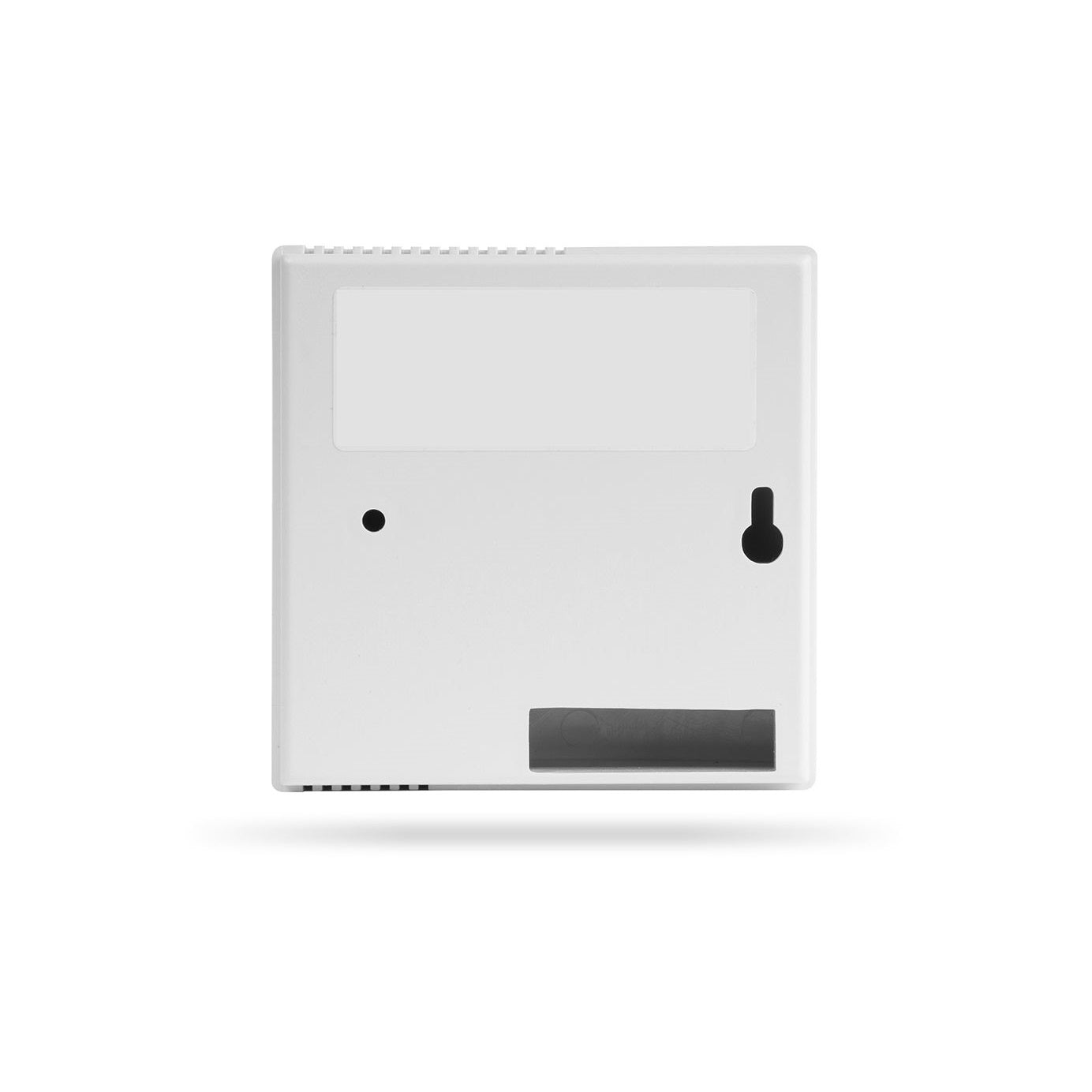

Seitron TAN01M Electronic Room Thermostat Summer - Winter

Electronic room heating thermostat summer/winter-230V on/off. Off/summer/winter switch and operating light. Mechanical lock for scale limitation. Internal probe and predisposition for remote probe. Power supply 230V~.

TECHNICAL SPECIFICATIONS:
Power supply 230V~ -15/+10% 50Hz
Working range 6 .. 30°C
Power consumption 7 VA max.
Differential 0.5°C
NTC sensor (4K7 Ohm @ 25°C)
Output (relay) 1x5(1)A @ 250V~ SPDT
Red LED indication Relay active
Off/heating/cooling selector
Dimensions H85 W85 D31mm
Protection degree IP30
Reg. Class 2013/811/EC I = 1.0%
