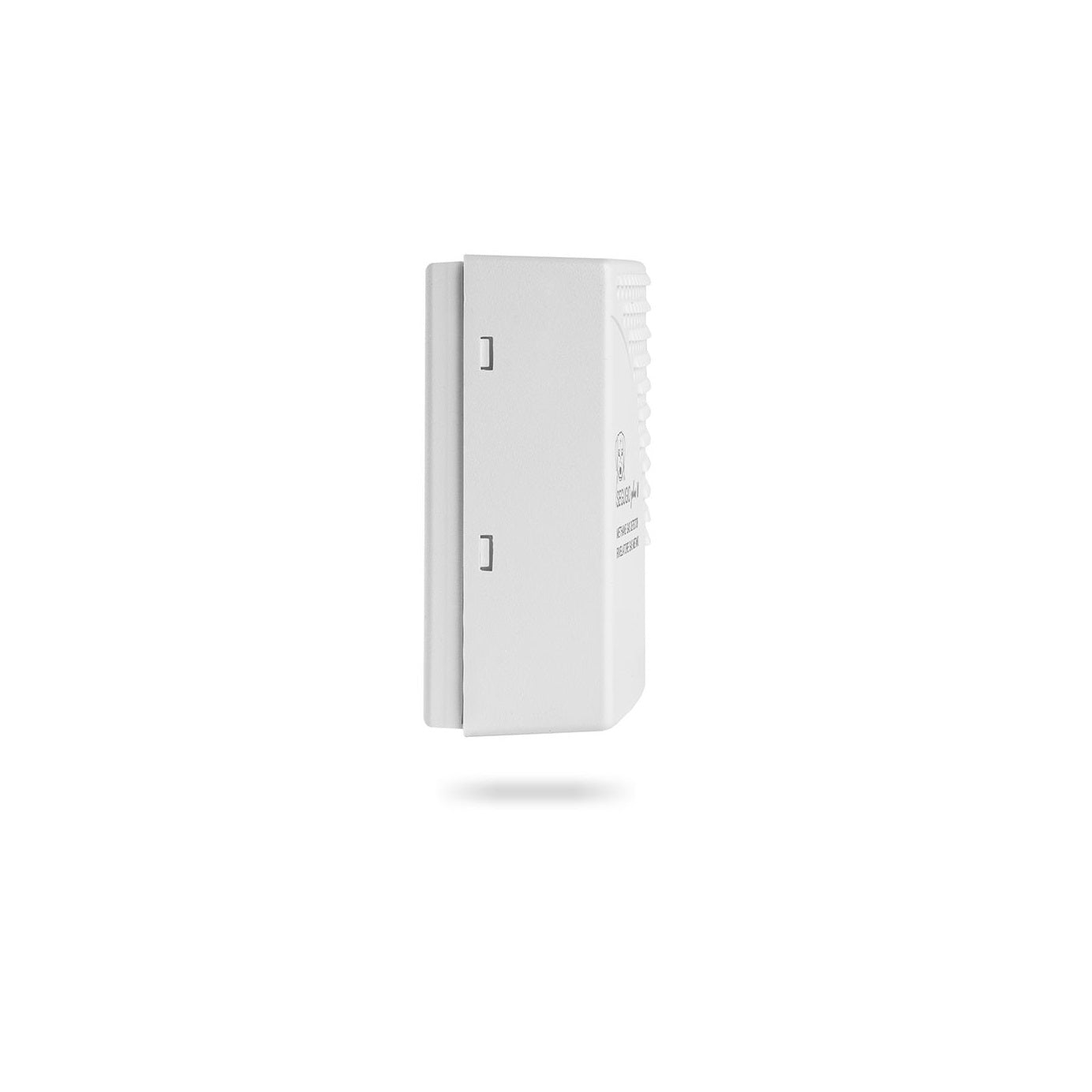

Seitron Segugio Radio Gas Leak Detector - Wireless LPG DDGSM1

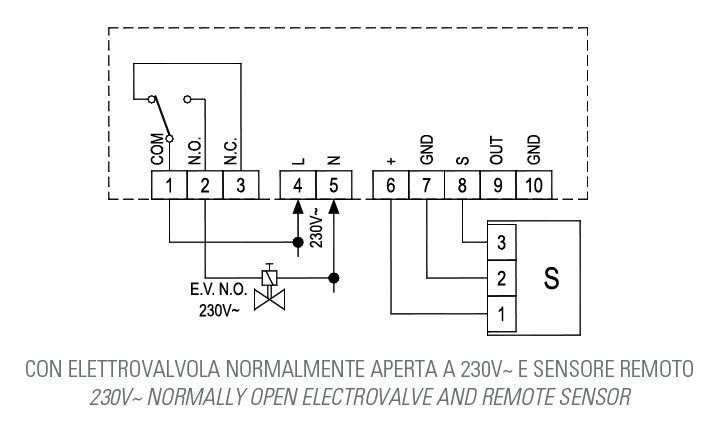

SEGUGIO plus METHANE/LPG version with radio transmitter module. Microprocessor-controlled gas leak detector for domestic use, capable of directly controlling 230V~ and 12V~/= solenoid valves. Mute and test functions. Pre-calibrated sensor, user-replaceable. Compliance with CEI-EN 50194-1 standard attests to the absolute reliability and efficiency of the appliance. The radio transmitter module sends "fault" and "alarm" statuses to a DRG01M gas alarm receiver.

TECHNICAL SPECIFICATIONS
Power supply 230V~ 50Hz
Output (relay) 6(2)A @ 250V~ SPDT
Sensor type SnO2 semiconductor
Pre-calibrated sensor, user-replaceable
Sensor lifespan 5 years
Alarm threshold 10% L.E.L.
Green LED indication Detector active
Yellow LED indication Detector fault
Red LED indication Alarm
Alarm buzzer 85dB (A) @ 1m
Protection degree IP42
Dimensions H84 W148 D40mm
Transmission frequency 868.150 MHz
Max receiver distance 50 m
