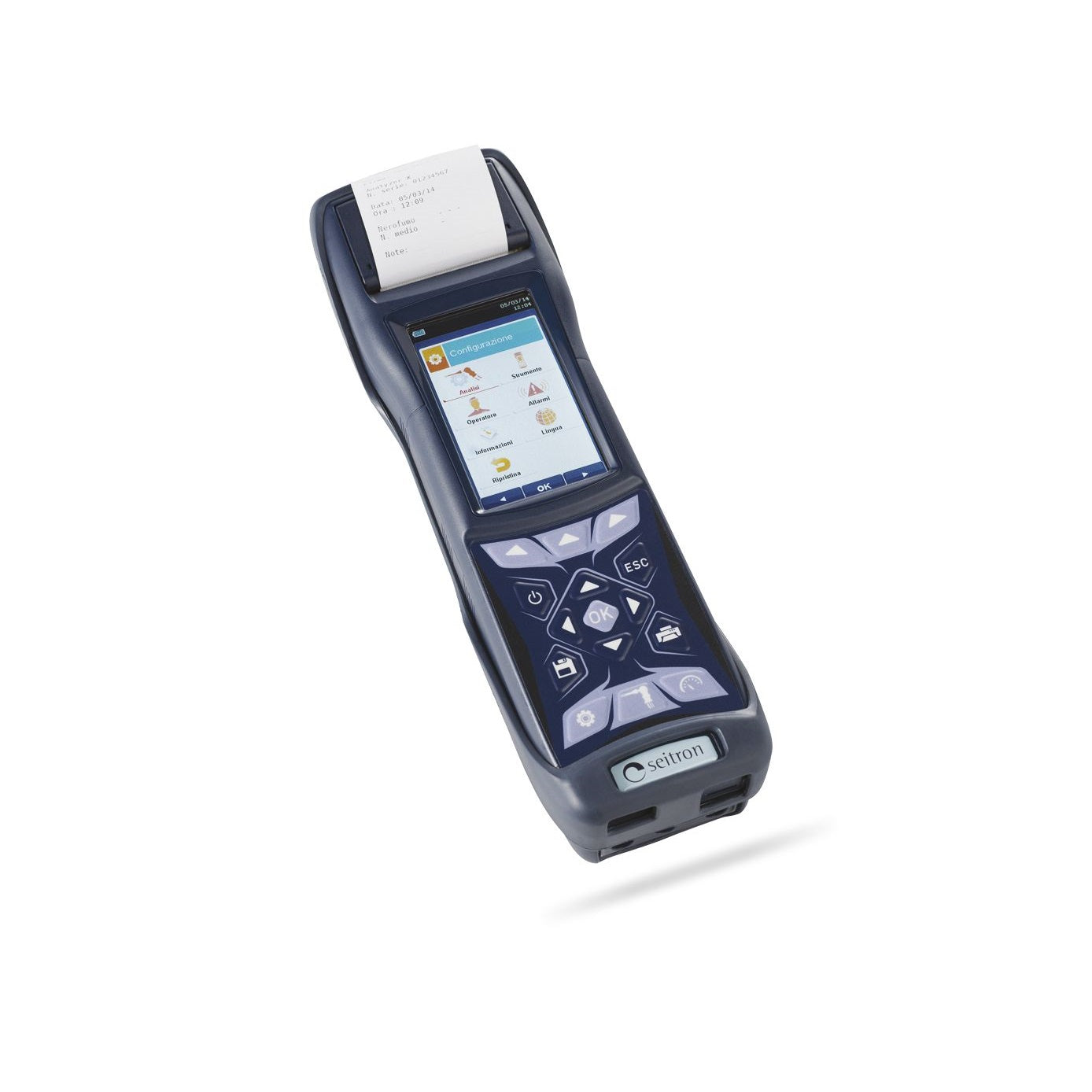

INDUSTRIAL EMISSION ANALYZER

• 5 sensors (O2, CO/H2 0 .. 8000 ppm, NO, NO2 , SO2)
• Expandable to 6 sensors
• With CO dilution pump
• Designed for UNI 7129:15 / UNI 11137:12 leak test
• Integrated printer

EACH KIT INCLUDES

• Instrument
• Protective casing

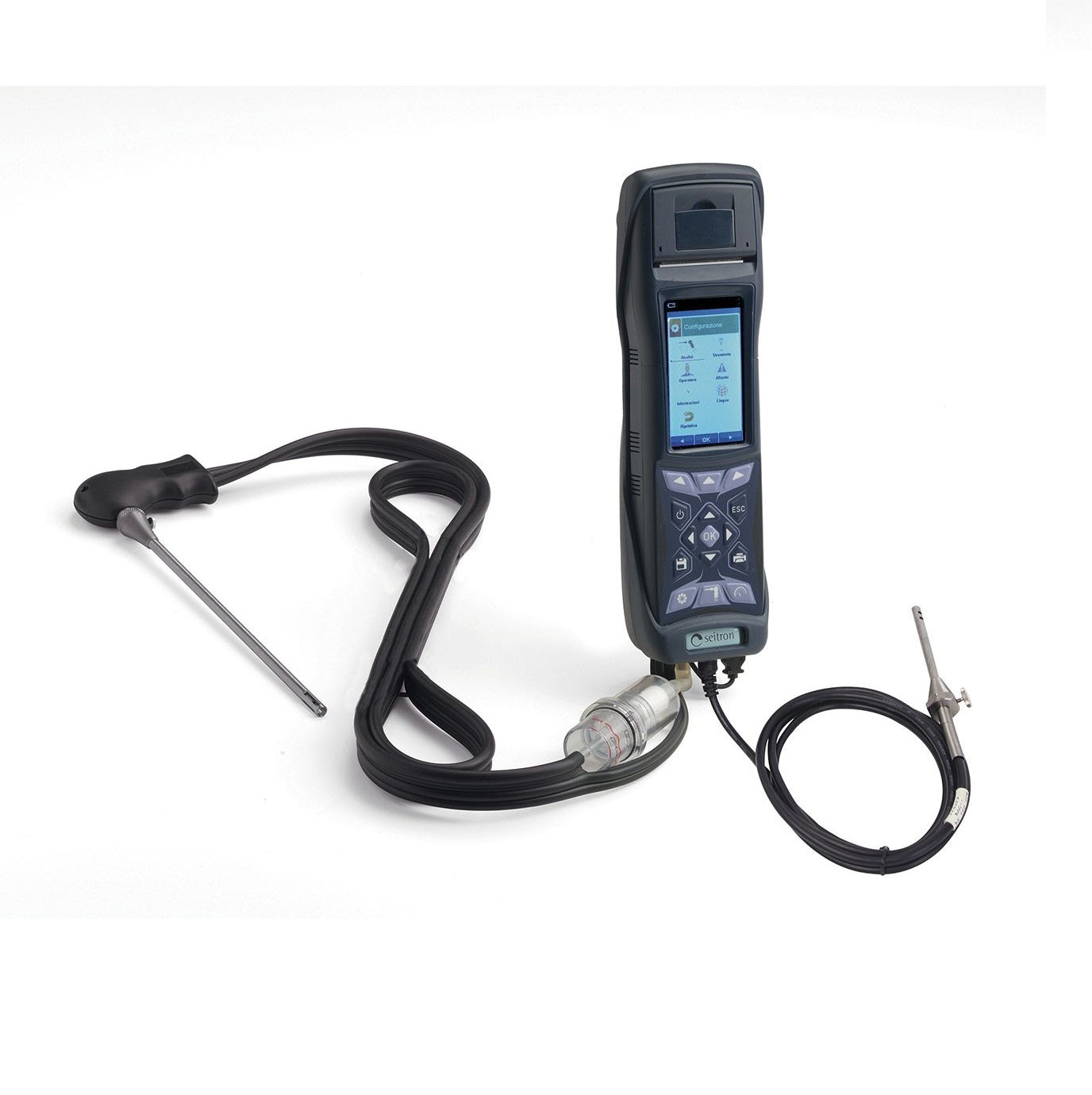

• 300mm smoke sampling probes with 3m cable
• Combustion air temperature probe
• Condensate trap
• EU plug
• Power cable
• Hard plastic case

MAIN FEATURES

• The combination of available measuring sensors generates hundreds of different versions
• Pre-calibrated gas measuring sensors replaceable in the field
• Possibility to choose from different sampling probes
• External anti-condensate trap with dust filters
• Suction pump / Second dilution pump for sampled gas to allow measurements up to 100,000 ppm of CO
• Large backlit color LCD, 10 pre-programmed languages
• EVA protective case with magnets
• Rechargeable lithium-ion batteries
• 15 pre-programmed fuels + 16 more programmable by the user
• Memory for 500 complete analyses
• Measurement of gas temperature, external air, ambient air
• Measurement of positive, negative, and differential pressure
• USB output
• Bluetooth® class 1 connectivity < 100 m
• Dimensions: Analyzer 270Ax93Lx68Pmm, weight 0.8 Kg Kit 130Ax510Lx430Pmm, weight 3.4 Kg
• Compliant with EN 50379-1, EN 50379-2, UNI 10389-1 standards

MEASURED QUANTITIES

• O2, CO, NO, NO2, SO2, H2S (with electrochemical sensors), CxHy (with pellistor sensor), CO2 (NDIR). For many gases, it is possible to have different measurement ranges and accuracies
