Seitron gas leak sensor control unit 10 IN 1 OUT + RESET RGI000LBXD

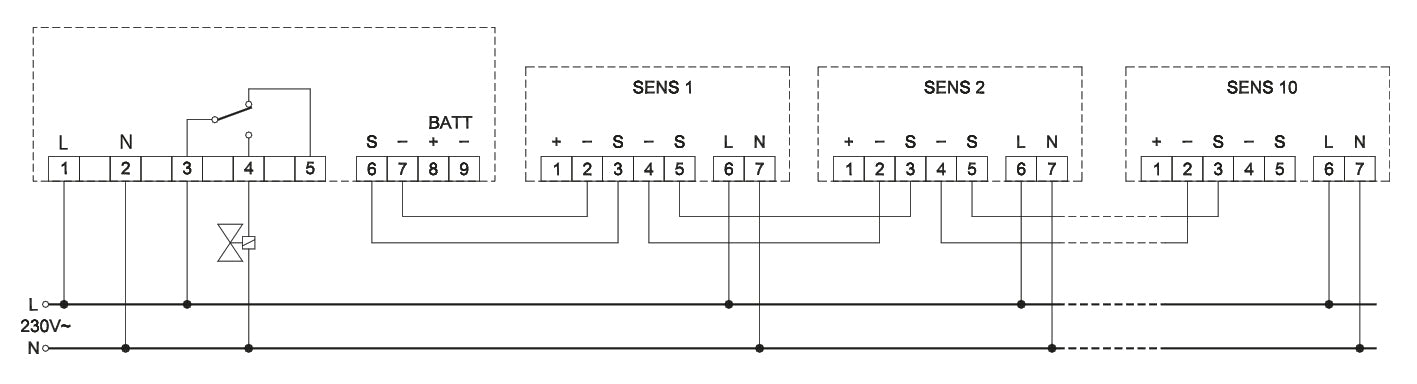

10 In 1 Out + Reset control unit for methane gas leak sensors with alarm siren for up to 10 remote sensors, powered at 230V~. Reset and test buttons.

TECHNICAL SPECIFICATIONS
Power supply 230V~ ±10% 50Hz
Battery 12V ±10%
Output (relay) 5(1)A @ 250V~ SPDT
Indications: active/pre-alarm/alarm Green/Red/Red LED
Delay on relay e.v. >20 sec.
Button 1 Test
Button 2 Reset
Enclosure 6 DIN rail modules
Dimensions H90 W105 D70mm
Protection degree IP54
