Seitron 8-channel power supply control unit ALP03U
€97,36 iva inclusa
Shipped 24-48 hours
Free shipping with minimum order of €500
- Description
- Technical data sheet
- Reviews

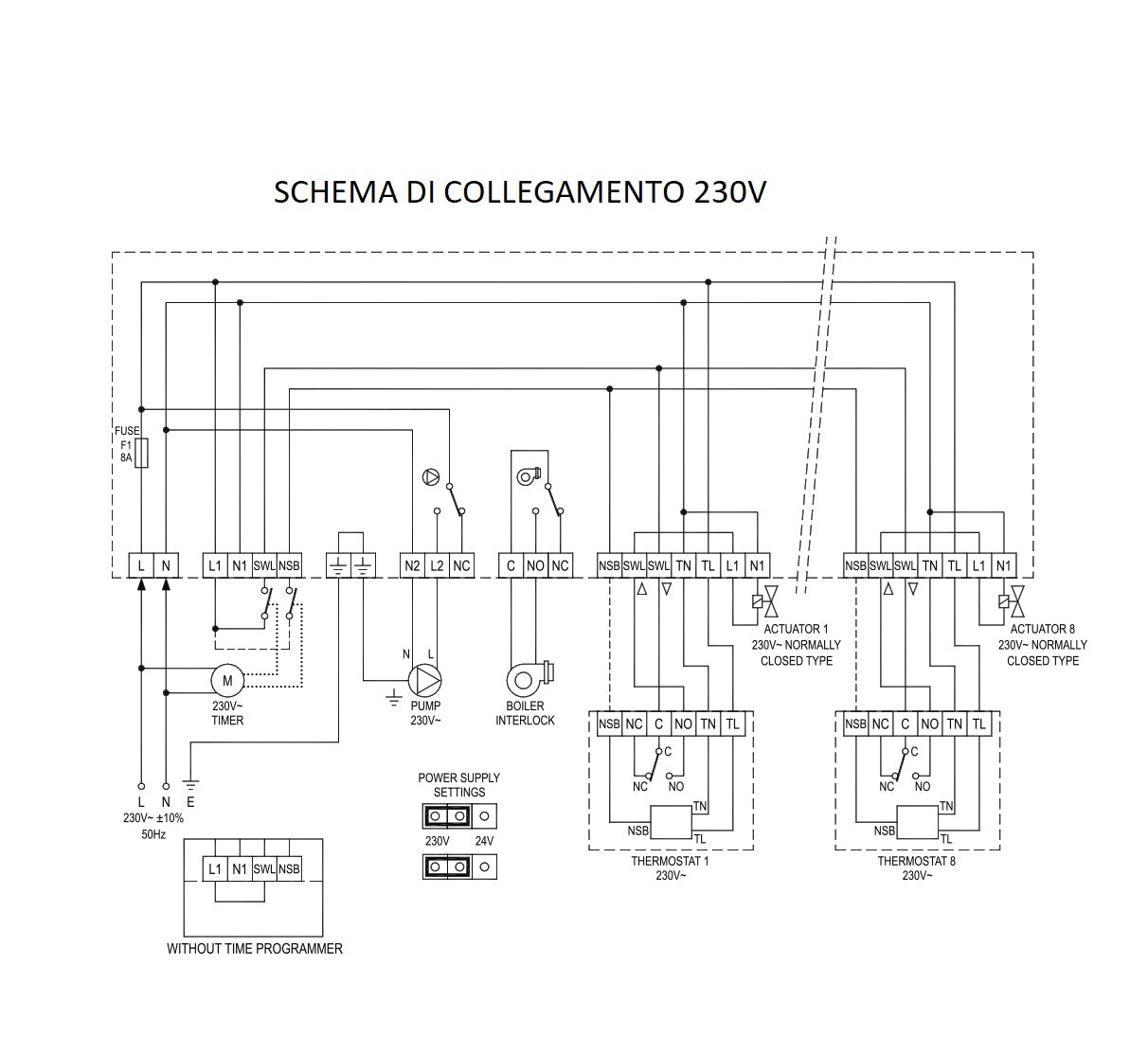

8-channel power supply - 230V-24V pump and boiler control. Electronic control unit for underfloor heating systems. The control unit offers the possibility of connecting up to 8 thermostats and 8 actuators with selectable power supply between 230V~ or 24V~. A pump output and a boiler control are available, as well as an input for an external programmer clock to activate or deactivate the actuator and thermostat section.
TECHNICAL SPECIFICATIONS
Power supply 230V ±10% 50Hz or 24V ±10% 50Hz
Control unit absorption Depends on connected actuators
Contact rating
Pump (powered) 5A @ 250V~ SPDT
Boiler 1A @ 250V~ SPDT
Actuators and thermostats 8x1A @ 250V~
Green LED Power indication
Red LED Pump active indication
Protection degree IP30
Self-extinguishing ABS V0 enclosure
Dimensions H100 W245 D60mm
