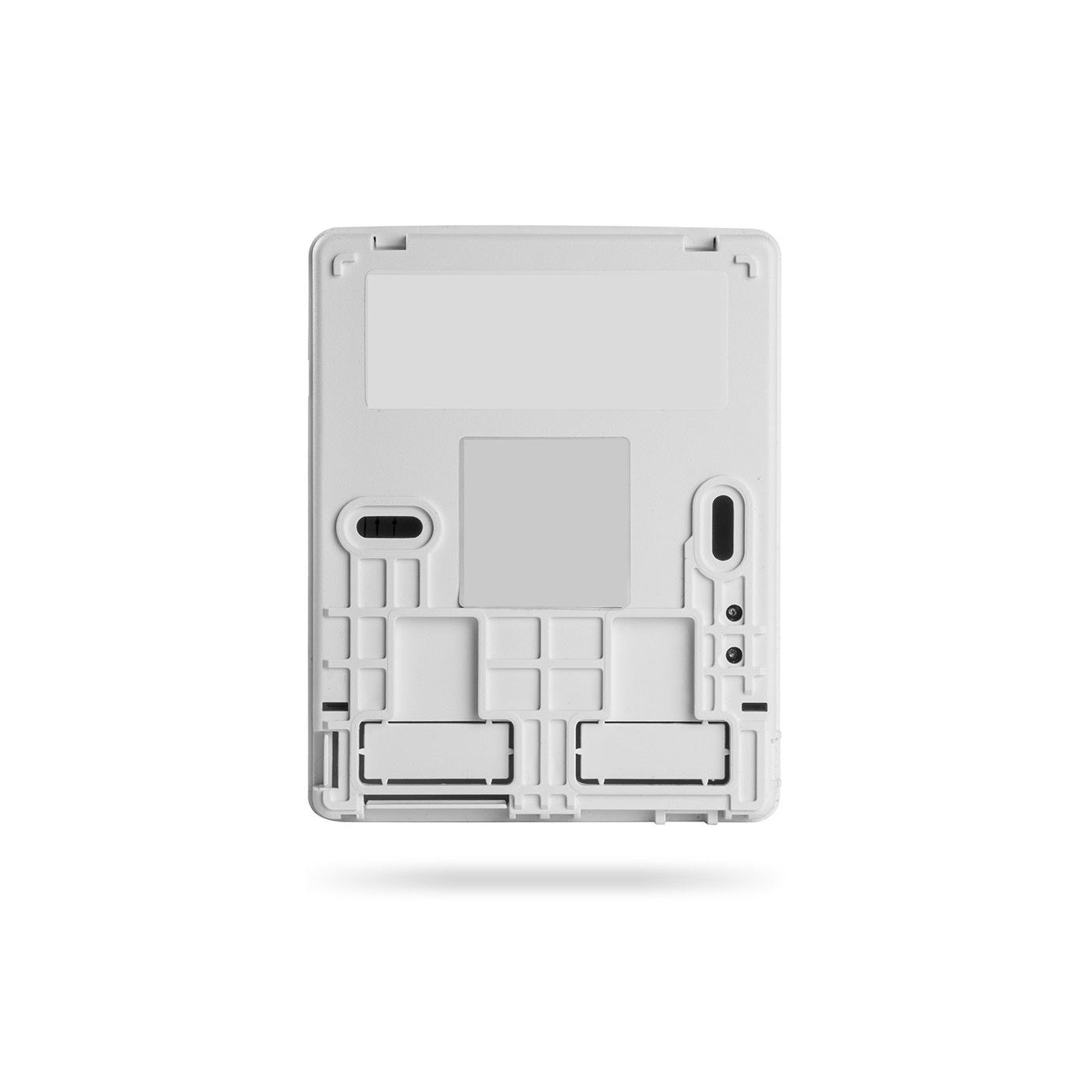

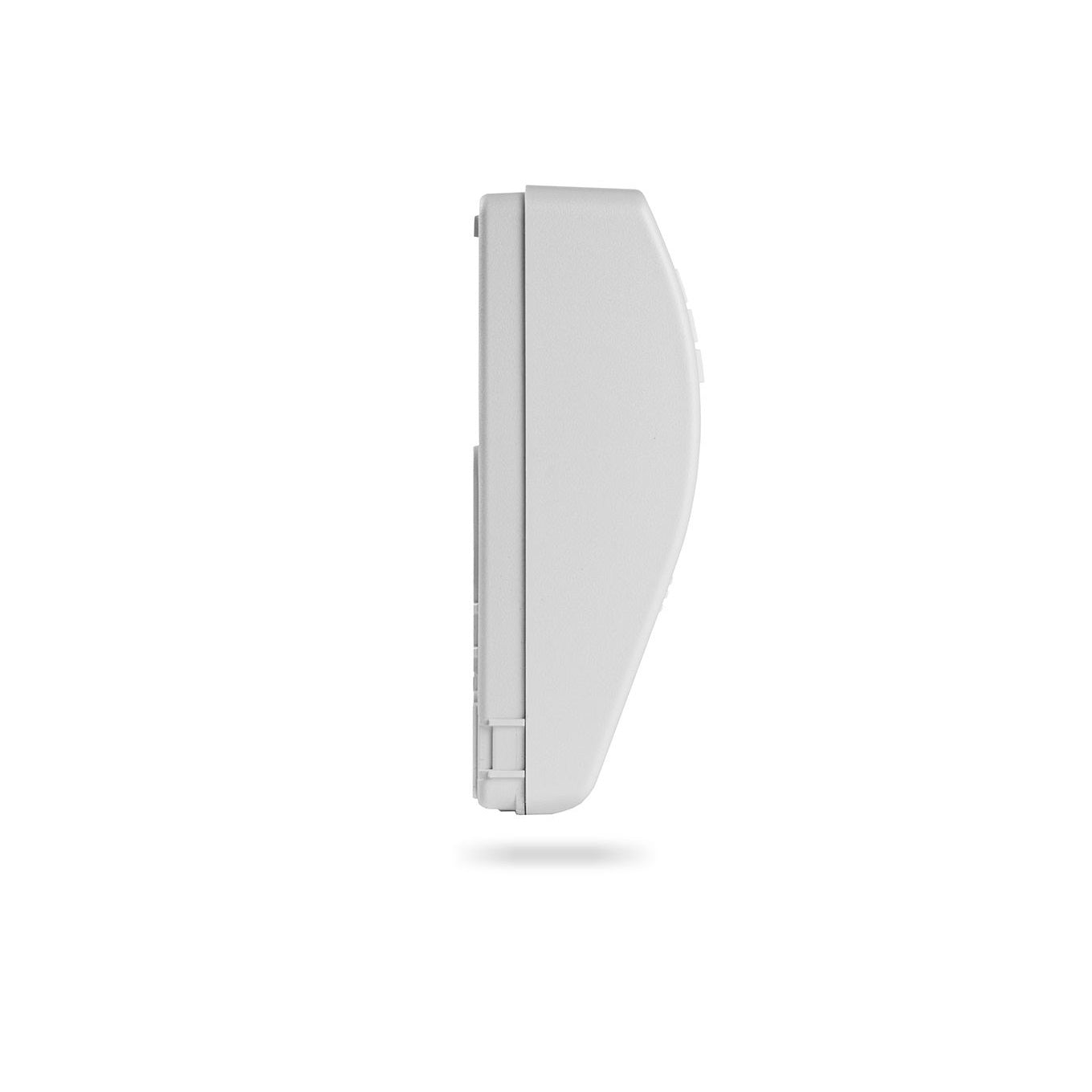

Seitron Beagle Plus LPG Gas Leak Detector RGDGP5MP1R

LPG domestic gas leak detector with the possibility of directly controlling a 230V~ solenoid valve. Test button. Complies with CEI-EN50194-1 standard. The IMQ quality mark and compliance with the CEI-EN 50194-1 standard attest to the absolute reliability and efficiency of the device. Pre-calibrated sensor, replaceable directly by the user.

TECHNICAL SPECIFICATIONS
Power supply 230V~ -15/+10% 50Hz
Sensor type SnO2 Semiconductor Pre-calibrated sensor, replaceable directly by the user
Intervention threshold 10% L.I.E./L.E.L.
Output (relay) 5(2)A @ 250V~ SPDT
Sensor lifespan 5 years
Green LED indicator Detector active
Yellow LED indicator Detector fault
Red LED indicator Alarm
Protection degree IP42
Dimensions H107 W85 D38mm
