Rothenberger - Bending Die for ROBEND 4000, 35mm / 1.3/8' - 1000001563

Die Set for ROBEND 4000: Precision in Pipe Bending

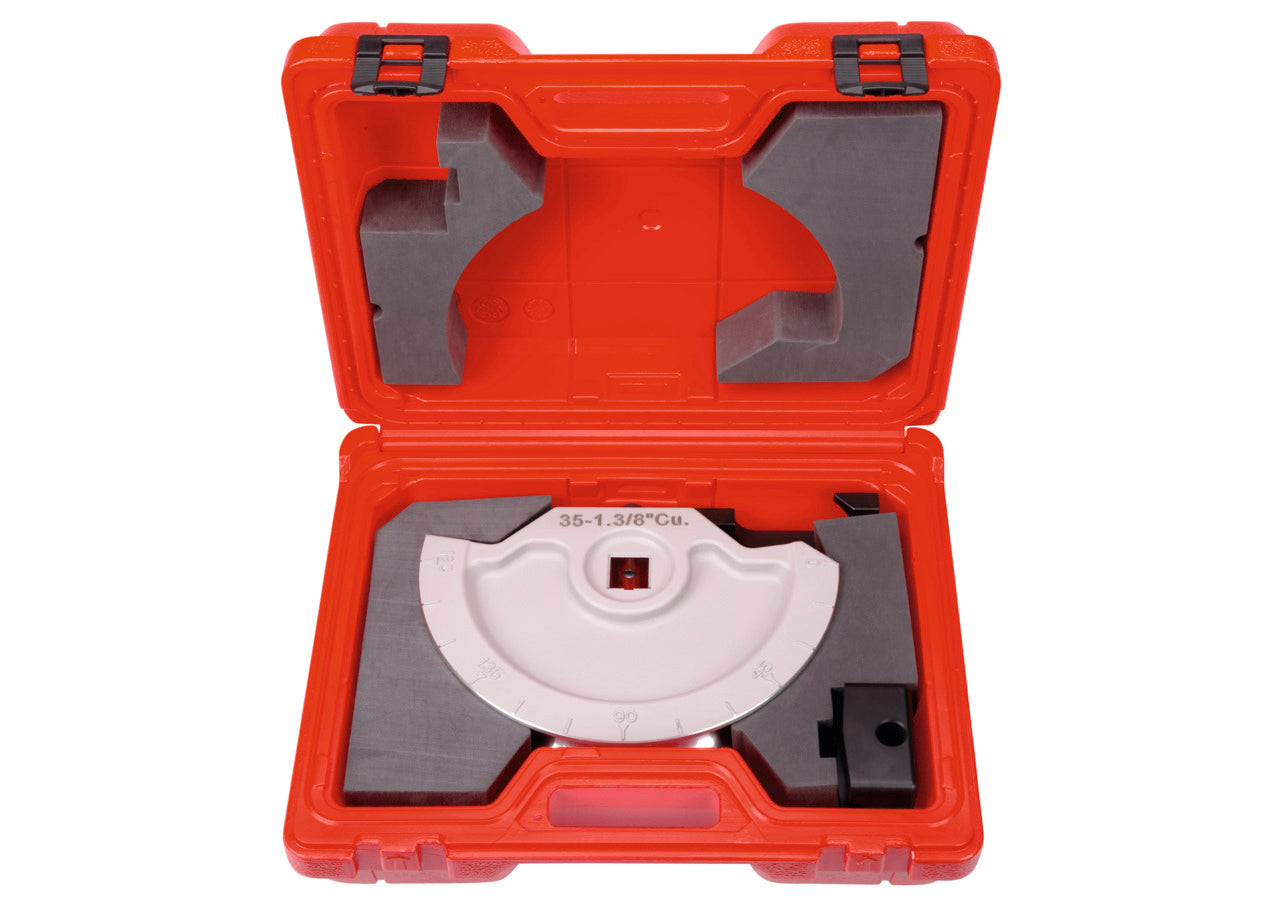

The Rothenberger 1000001563 die set is an essential accessory designed specifically for the ROBEND 4000 electric pipe bender. With a diameter of 35mm (1.3/8), this die set allows for precise and uniform bends on copper, stainless steel, carbon steel, and other materials compatible with the ROBEND 4000 system. Made from high-quality materials, it ensures resistance to intensive use and longevity in professional applications.

Technical Characteristics

The Rothenberger 35mm / 1.3/8 die set is designed with extreme dimensional precision to ensure perfect bends without deformation or ovalization of the pipe. Its ergonomic design facilitates installation and removal from the pipe bender, optimizing working times. The surface of the die is treated to reduce friction during bending, minimizing the risk of marks or scratches on the worked pipe.

Practical Applications

This accessory is used in numerous professional sectors:

• Installation of residential and commercial plumbing systems
• Creation of heating and air conditioning systems
• Installation of industrial and refrigeration systems
• Construction of fluid lines in marine and automotive fields
• Maintenance and repair of existing systems

Operational Advantages

The use of the Rothenberger 35mm die set offers significant benefits to professional installers:

• Elimination of the need for fittings for direction changes, reducing potential leak points
• Cost savings thanks to the reduction in the number of joints required
• Improved aesthetics of the system with uniform and precise bends
• Optimization of hydraulic flow thanks to controlled radius bends
• Reduction of installation times compared to using traditional fittings

Compatibility and System

The 1000001563 die set is part of the modular Rothenberger pipe bending system. It is designed to integrate perfectly with the ROBEND 4000 electric pipe bender, but can also be used with other compatible models in the Rothenberger range. The complete system allows for bending pipes of various diameters simply by replacing the appropriate die set.

Usage Specifications

For optimal results, it is recommended to follow the manufacturer's instructions regarding bending speed and the use of specific lubricants when necessary. The die set is designed to ensure bending angles up to 180° while maintaining the structural integrity of the pipe. The bending radius is designed to comply with industry technical standards, ensuring no significant flow restriction at the bending point.

Maintenance and Storage

To preserve the efficiency and precision of the die set over time, regular cleaning after use is recommended, removing any lubricant or material residues. Ideal storage involves a dry and dust-free environment, preferably in the original Rothenberger case or in a container that protects it from accidental impacts that could compromise its geometric precision.
