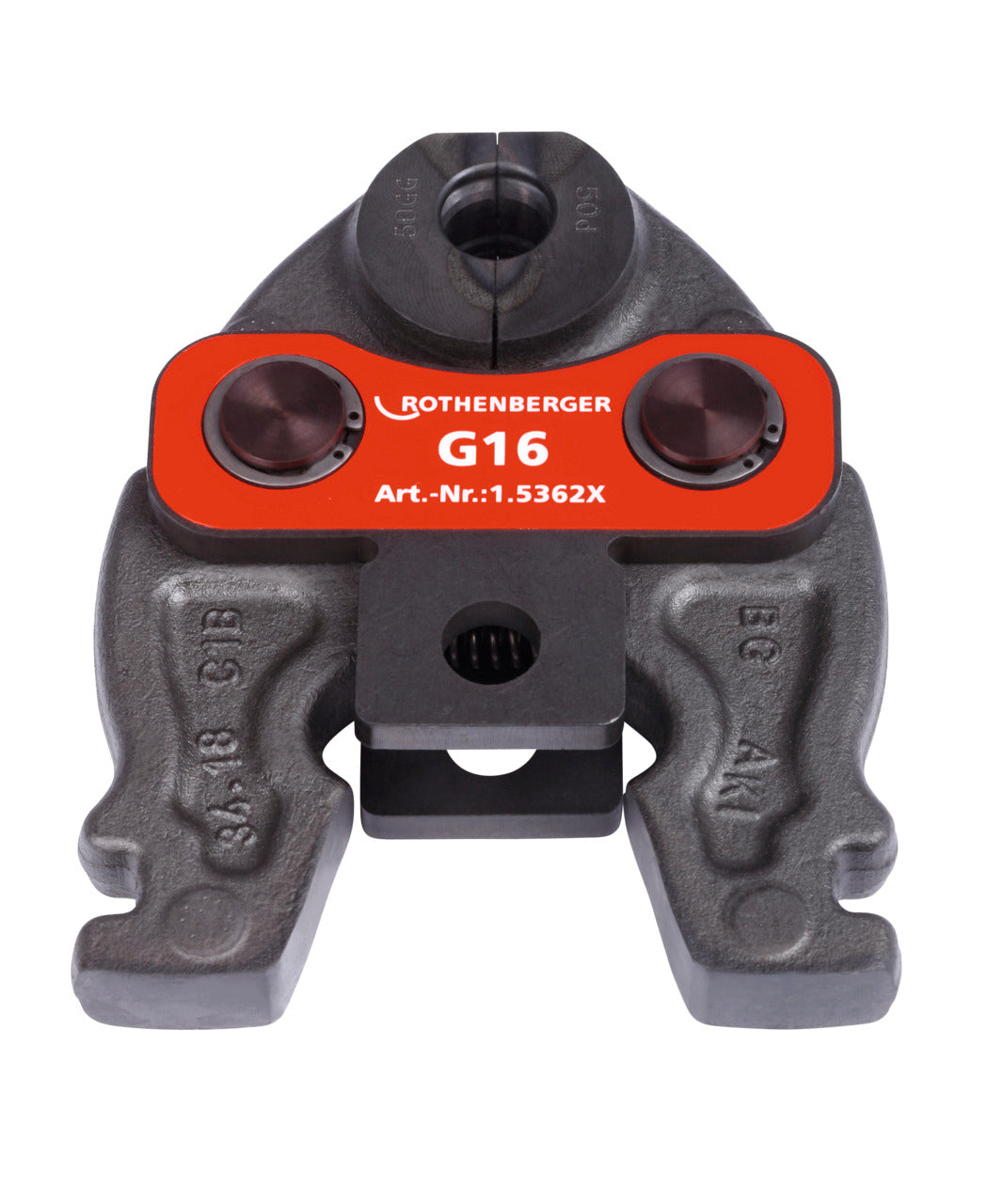

Rothenberger - Compact G16 Jaw for Press Tool - 015362X

Features of the Rothenberger Compact G16 Jaw

The Compact G16 Jaw (item code 015362X) is an essential tool in the Rothenberger press tool accessory range. Specifically designed for creating press connections on metal pipes with a diameter of 16 mm, this jaw stands out for its robust construction from high-quality steel, ensuring durability and consistent performance even after repeated use. The precise geometry of the jaw guarantees reliable and perfectly sealed connections, which are fundamental for plumbing, heating, and gas systems where safety is a priority.

Compatibility and Versatility

The Compact G16 Jaw has been developed to integrate seamlessly with Rothenberger press tools from the Compact series, including the Romax Compact and Romax Compact TT models. This compatibility makes it a versatile tool for plumbing and heating professionals. The jaw is designed according to the G profile, widely used for press fittings from various manufacturers, thus expanding its applicability in various installation contexts. The quick-release system allows for fast mounting on the press tool, optimizing work time on site.

Technical and Practical Advantages

Among the main strengths of the Rothenberger Compact G16 Jaw are:

• Guaranteed pressing precision thanks to high-precision CNC machining
• Low weight which reduces fatigue during prolonged use
• Internal profile designed to prevent excessive pipe deformation during pressing
• Secure locking mechanism that prevents accidental disconnections during operation
• Clear markings to easily identify diameter and profile
• Corrosion resistance due to surface treatment

Main Applications

The G16 Jaw is used in numerous installation contexts, including:

• Construction of residential and commercial plumbing systems
• Installation of radiator heating systems
• Assembly of underfloor heating systems
• Creation of distribution lines for potable water
• Installation of solar thermal systems
• Maintenance and repair of existing systems

Detailed Technical Specifications

The jaw has well-defined technical specifications that determine its optimal performance:

• Nominal diameter: 16 mm

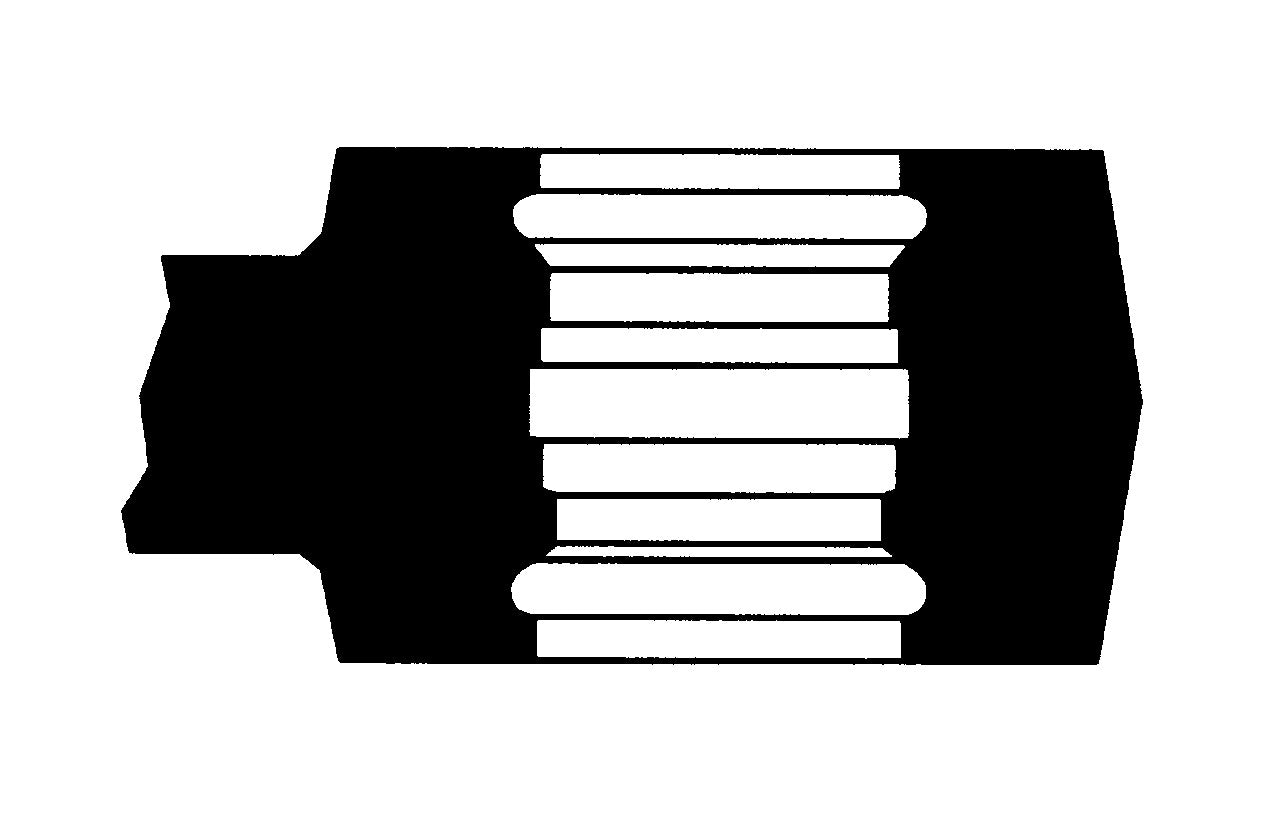

• Pressing profile: G (compatible with Geberit Mapress and similar systems)
• Material: Special hardened steel
• Surface finish: Anti-oxidant treatment
• Required pressing force: 19-22 kN (depending on the press tool model)
• Operating temperature: from -10°C to +60°C

Maintenance and Care

To ensure long-lasting and reliable performance, the Compact G16 Jaw requires minimal but regular maintenance. It is advisable to periodically clean the internal profile of any residues, lightly lubricate the articulation pins, and check for any visible deformations or damage before each use. Rothenberger also recommends periodic review at authorized centers, especially after intensive use, to ensure that the pressing tolerances remain within optimal parameters. Storing the jaw in a dry and protected environment when not in use significantly extends its lifespan.
