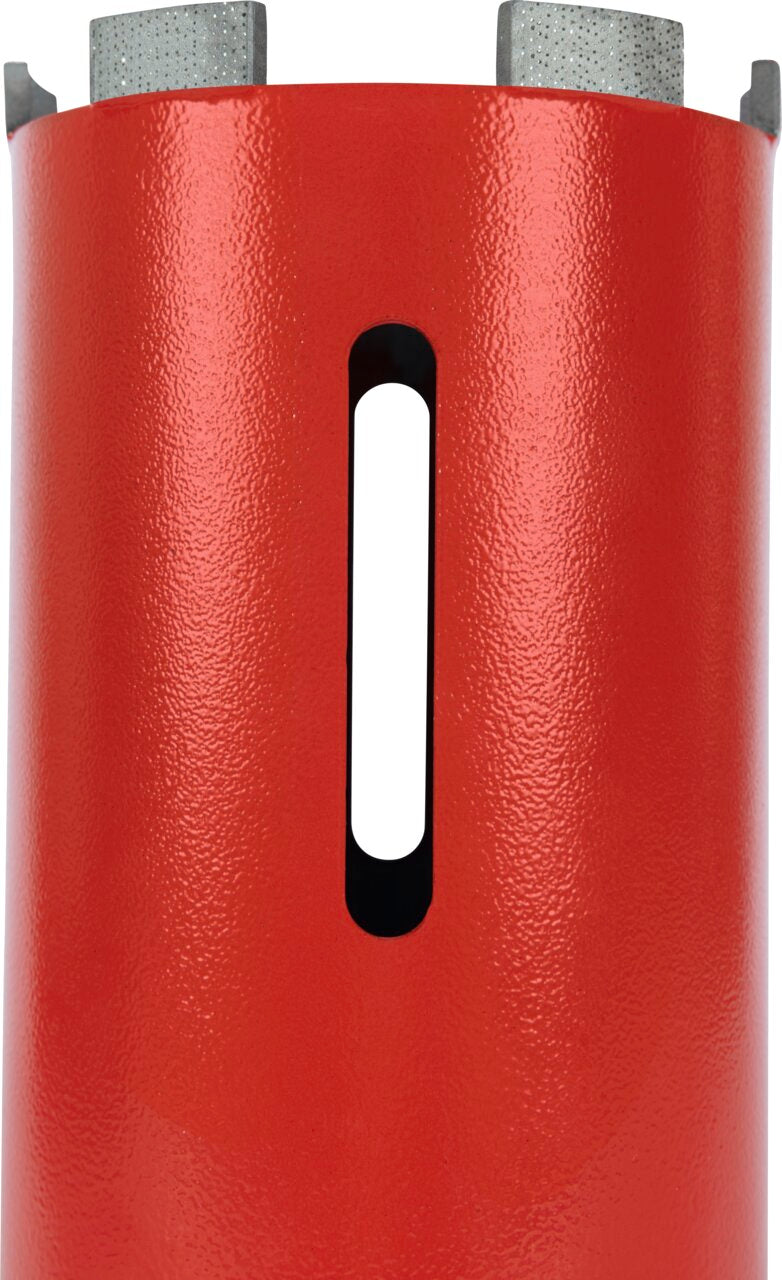

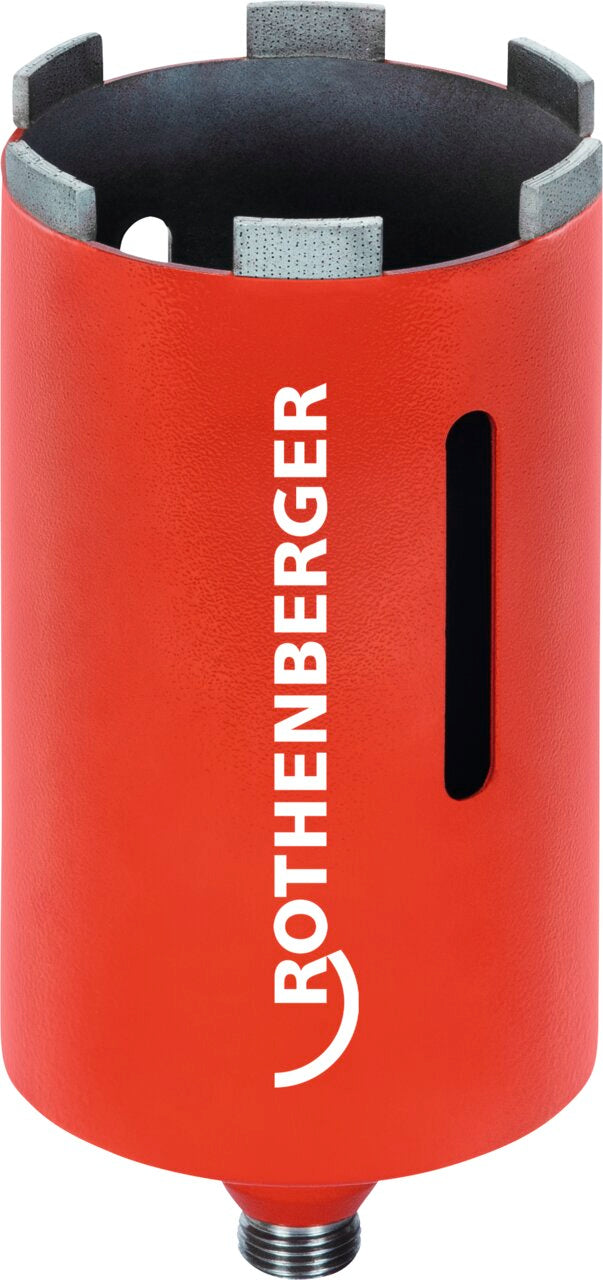

Rothenberger DX High Speed Dry, 1/2', D=92, NL=150 - 1500004088

Features of the Rothenberger DX High Speed Dry

The Rothenberger DX High Speed Dry 1/2, with a diameter of 92 mm and a working length of 150 mm (item code 1500004088), represents an advanced solution for dry drilling construction materials. Specifically designed for professionals in the construction and plumbing industries, this tool combines innovative cutting technology and high-quality materials to ensure superior performance even in the most demanding working conditions.

High-speed dry drilling technology

Rothenberger's High Speed Dry technology allows for precise drilling without the need for water cooling. This innovative system significantly reduces processing times while maintaining optimal operating temperatures thanks to the special geometry of the diamond segments that promotes heat dissipation. The core bit is optimized to operate at high rotation speeds, enabling quick and clean cuts through materials such as concrete, bricks, natural and artificial stone.

Technical specifications

The model has the following technical characteristics:

• Outer diameter: 92 mm
• Working length: 150 mm
• Connection: 1/2 inch
• High concentration diamond segments
• Hardened steel body
• Designed for use with professional drills and hammer drills
• Recommended rotation speed: 800-1200 rpm
• Optimized weight to reduce fatigue during use

Main applications

This diamond core bit is ideal for multiple professional applications:

• Installation of plumbing and heating systems
• Passage of pipes and electrical cables through walls and slabs
• Installation of ventilation systems
• Installation of electrical junction boxes
• Creation of holes for drains
• Renovation and building refurbishment works

Operational advantages

Using the Rothenberger DX High Speed Dry offers numerous benefits:

• Elimination of the need for water for cooling, resulting in reduced preparation and cleaning times
• Higher execution speed compared to traditional core bits
• Reduced vibrations during drilling
• Less dust production thanks to the optimized segment geometry
• Superior durability even on abrasive materials
• Hole precision with minimal tolerances
• Possibility of working in environments where the use of water is problematic

Compatibility and usage

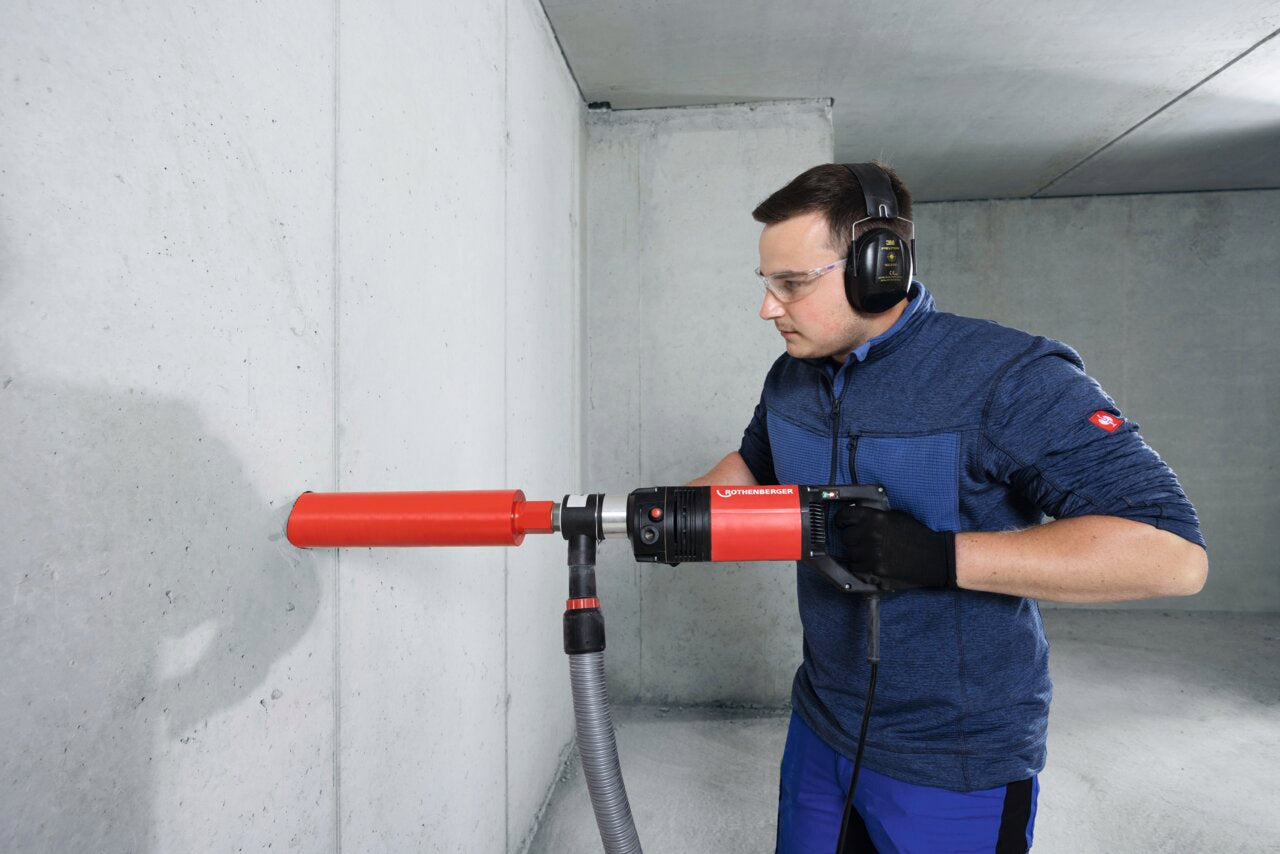

The Rothenberger DX High Speed Dry is compatible with most professional drills and hammer drills with a 1/2-inch connection. For optimal results, it is recommended to use it with machines that can guarantee adequate power and precise control of the rotation speed. The core bit can be used both manually and with column supports to ensure maximum precision in jobs that require particular accuracy.

Maintenance and storage

To preserve the efficiency and prolong the useful life of the diamond core bit, regular cleaning after each use is recommended, removing dust and debris from the diamond segments. In case of reduced cutting performance, the diamond segments can be revitalized by brief operations on abrasive materials such as sandstone or refractory bricks. Store the tool in a dry environment and protected from accidental impacts that could damage the diamond segments.
